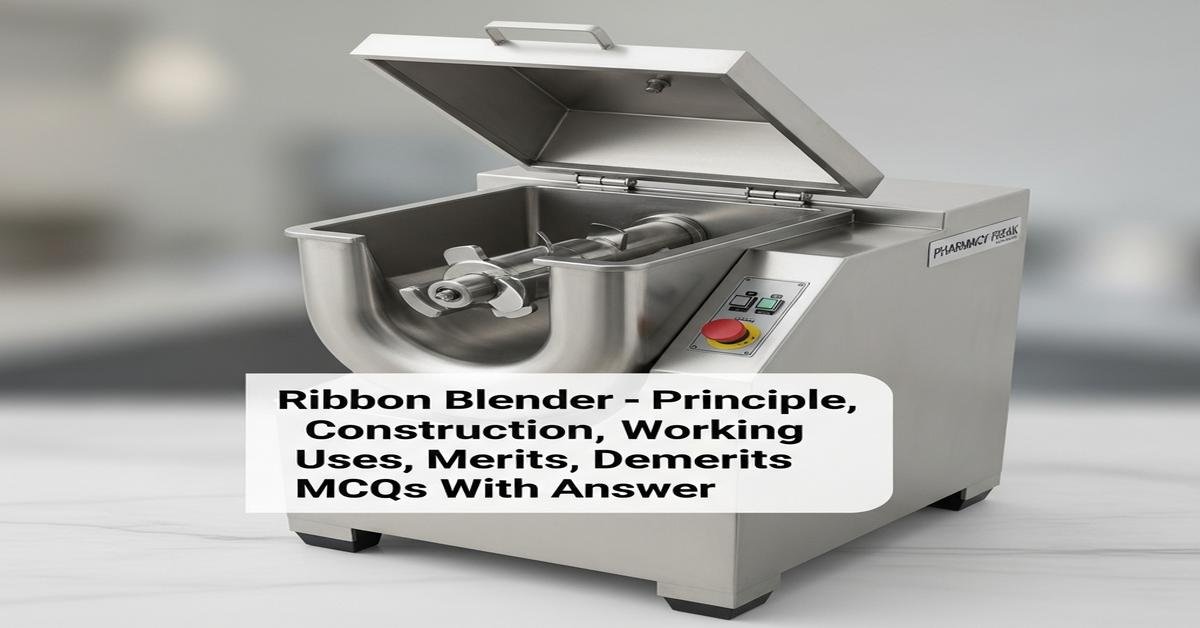

Ribbon blender is a common pharmaceutical mixing equipment used for uniform powder blending in tablet, capsule and granule formulations. This introduction explains the principle of counter-current mixing by inner and outer helical ribbons, key construction features (shaft, ribbons, trough, seals), working parameters (speed, fill level, residence time), typical uses in pharmaceutical processes, and its merits and demerits. Understanding ribbon blender design and operation helps B. Pharm students optimize powder homogeneity, avoid segregation, and meet GMP cleaning and validation needs. Now let’s test your knowledge with 50 MCQs on this topic.
Q1. What is the fundamental mixing mechanism in a ribbon blender?
- Vibratory agitation
- Counter-current movement of materials by inner and outer helical ribbons
- Fluidization by gas flow
- Centrifugal separation
Correct Answer: Counter-current movement of materials by inner and outer helical ribbons
Q2. Which component directly conveys material toward the discharge end in a typical double-ribbon blender?
- Outer ribbon
- Heating jacket
- Inner ribbon
- End bearing
Correct Answer: Inner ribbon
Q3. The trough of a ribbon blender is usually shaped as:
- Rectangular box
- Conical hopper
- Cylindrical with U-shaped cross-section
- Pyramid
Correct Answer: Cylindrical with U-shaped cross-section
Q4. Which parameter most strongly affects mixing time in a ribbon blender?
- Material color
- Ribbon speed (shaft RPM)
- Ambient humidity
- Electrical supply phase
Correct Answer: Ribbon speed (shaft RPM)
Q5. What is the primary advantage of a double helical ribbon over a single ribbon?
- Lower manufacturing cost
- Better heat transfer
- Enhanced counter-current mixing for improved homogeneity
- Reduced need for bearings
Correct Answer: Enhanced counter-current mixing for improved homogeneity
Q6. Which of the following is a common discharge mechanism for ribbon blenders?
- Screw conveyor through bottom
- Rotary valve in center
- Bottom discharge door or valve
- Top overflow outlet
Correct Answer: Bottom discharge door or valve
Q7. In pharmaceutical use, why is cleanability of a ribbon blender important?
- To reduce motor wear
- To prevent cross-contamination between batches and meet GMP
- To increase mixing speed
- To improve heat exchange efficiency
Correct Answer: To prevent cross-contamination between batches and meet GMP
Q8. Which material property increases the risk of poor mixing in ribbon blenders?
- Low bulk density
- High flowability
- Strong cohesion or caking tendency
- Small particle size only
Correct Answer: Strong cohesion or caking tendency
Q9. What is the typical effect of overfilling a ribbon blender beyond recommended fill level?
- Improved mixing efficiency
- Reduced mixing efficiency and poor homogeneity
- No change in performance
- Lower energy consumption
Correct Answer: Reduced mixing efficiency and poor homogeneity
Q10. Which of the following is a merit of ribbon blenders in pharmaceuticals?
- High shear suitable for granulation
- Low cost per unit and versatile for powders
- Ideal for very sticky, plastic materials without issues
- Continuous wet granulation capability
Correct Answer: Low cost per unit and versatile for powders
Q11. Which sealing option is commonly used on ribbon blender shafts to maintain hygiene?
- Open shaft seal
- Labyrinth or mechanical seals with flush
- No seal required
- Porous felt seal
Correct Answer: Labyrinth or mechanical seals with flush
Q12. What role does the ribbon pitch play in a ribbon blender?
- Determines electrical load only
- Affects the axial conveyance rate and mixing intensity
- Controls heater temperature
- Prevents corrosion
Correct Answer: Affects the axial conveyance rate and mixing intensity
Q13. Which mixing index is commonly used to assess homogeneity in powder blending?
- Color index
- Coefficient of variation (CV) or relative standard deviation (RSD)
- pH value
- Specific gravity
Correct Answer: Coefficient of variation (CV) or relative standard deviation (RSD)
Q14. What cleaning validation challenge is specific to ribbon blenders?
- Too easy to clean so validation is unnecessary
- Residue in crevices between ribbons and trough walls can be hard to remove
- Heat sterilization is always required
- Cleaning only affects electrical components
Correct Answer: Residue in crevices between ribbons and trough walls can be hard to remove
Q15. Which type of pharmaceutical operation commonly uses ribbon blenders?
- Tablet powder blending and dry powder mixing
- Continuous freeze drying
- High-pressure liquid chromatography
- Lyophilization of injectables
Correct Answer: Tablet powder blending and dry powder mixing
Q16. What is a typical cause of segregation after blending in a ribbon blender?
- Excessive binder content only
- Large differences in particle size or density among components
- Correct fill level
- Using a double ribbon design
Correct Answer: Large differences in particle size or density among components
Q17. During scale-up of a ribbon blender, which dimensionless factor is important to maintain similar mixing?
- Peclet number or dimensionless mixing parameters like tip speed to diameter ratio
- Ambient humidity only
- Color of the ribbons
- Voltage frequency only
Correct Answer: Peclet number or dimensionless mixing parameters like tip speed to diameter ratio
Q18. Which measurement is commonly used to determine end-point of mixing in practice?
- Visual inspection alone
- Sampling and assay of marker component to achieve target CV
- Motor current only
- Sound level measurement
Correct Answer: Sampling and assay of marker component to achieve target CV
Q19. What is a common demerit of ribbon blenders compared with high-shear mixers?
- They provide excessive granulation
- They are not suitable for wet high-shear granulation and have low shear
- They are too small for industrial use
- They always require vacuum
Correct Answer: They are not suitable for wet high-shear granulation and have low shear
Q20. For uniform mixing of a potent drug at low concentration, which practice is recommended with a ribbon blender?
- Mix full batch immediately at high speed
- Use stepwise dilution or geometric dilution and careful sampling
- Skip blending and direct tableting
- Only use single-paddle blenders
Correct Answer: Use stepwise dilution or geometric dilution and careful sampling
Q21. How does ribbon blender speed affect heat-sensitive powders?
- Higher speed always cools material
- Higher speed can increase frictional heating and may degrade heat-sensitive powders
- Speed has no effect on temperature
- Speed only affects color, not heat
Correct Answer: Higher speed can increase frictional heating and may degrade heat-sensitive powders
Q22. Which inspection is critical before operating a ribbon blender to ensure safety?
- Verify blender color
- Check interlocks, guards, seals, and ensure discharge valve closed
- Weigh the operator
- Measure ambient noise only
Correct Answer: Check interlocks, guards, seals, and ensure discharge valve closed
Q23. What design feature helps reduce dead zones in a ribbon blender?
- Sharp 90-degree corners in trough
- Proper ribbon overlap and close clearance to trough wall
- Excessive fill level above 100%
- Using flat paddles instead of helical ribbons
Correct Answer: Proper ribbon overlap and close clearance to trough wall
Q24. Which cleaning method is commonly used for ribbon blenders in pharma?
- CIP (clean-in-place) or manual disassembly with validated cleaning procedures
- Only dry brushing without validation
- Never clean between batches
- Use of unvalidated detergents only
Correct Answer: CIP (clean-in-place) or manual disassembly with validated cleaning procedures
Q25. Which factor primarily determines power consumption of a ribbon blender?
- Color of the powder
- Viscosity of the powder mass, fill level, and ribbon speed
- Operator experience only
- Type of discharge valve only
Correct Answer: Viscosity of the powder mass, fill level, and ribbon speed
Q26. What is the typical effect of adding lubricants like magnesium stearate late in mixing?
- It has no impact on tablet properties
- It can cause over-lubrication leading to poor tablet hardness and dissolution if mixed too long
- It increases blending speed
- It eliminates segregation entirely
Correct Answer: It can cause over-lubrication leading to poor tablet hardness and dissolution if mixed too long
Q27. Where are ribbon blenders limited compared to tumble blenders?
- Better for fragile granules
- Less gentle for shear-sensitive and friable materials due to some shear and contact
- They are always more hygienic
- They cost less to operate in all cases
Correct Answer: Less gentle for shear-sensitive and friable materials due to some shear and contact
Q28. Which powder property favors efficient mixing in a ribbon blender?
- Wide particle size distribution with extreme fines
- Similar particle size and density among components
- Very sticky hygroscopic powders without flow aids
- Highly electrostatic powders only
Correct Answer: Similar particle size and density among components
Q29. How is the ribbon orientation relative to the trough wall important?
- It determines the blender’s color
- Proper orientation minimizes dead zones and ensures material conveyance
- Orientation is irrelevant
- It only affects how easy seals are to replace
Correct Answer: Proper orientation minimizes dead zones and ensures material conveyance
Q30. What is a typical residence time strategy for achieving homogeneity in ribbon blenders?
- Very short time always sufficient
- Empirically determined mixing time based on CV targets, often minutes rather than seconds
- Fixed one-hour standard for all powders
- No mixing time needed for powders
Correct Answer: Empirically determined mixing time based on CV targets, often minutes rather than seconds
Q31. Which maintenance item is critical for ribbon blender longevity?
- Painting the exterior monthly
- Regular inspection and lubrication of bearings and seals
- Changing ribbon color yearly
- Replacing trough every week
Correct Answer: Regular inspection and lubrication of bearings and seals
Q32. Why might a jacketed trough be used with a ribbon blender in pharmaceuticals?
- For decorative purposes
- To control powder temperature via heating or cooling during mixing
- To reduce motor load
- To increase emptying time
Correct Answer: To control powder temperature via heating or cooling during mixing
Q33. What is the effect of high moisture content in powders being mixed in a ribbon blender?
- Enhanced flow always
- May lead to agglomeration, caking, and poor flow resulting in non-uniform mixing
- No effect on blending
- Always improves homogeneity
Correct Answer: May lead to agglomeration, caking, and poor flow resulting in non-uniform mixing
Q34. Which safety device is essential on a ribbon blender to prevent operation with open lids?
- Manual latch only
- Interlock switch on access doors or lids
- No device needed
- Color-coded sticker
Correct Answer: Interlock switch on access doors or lids
Q35. Which testing method can detect inadequate mixing zones in a blended powder?
- Surface gloss measurement
- Spatial sampling across multiple locations and assay of marker component
- Checking blender weight only
- Auditory inspection
Correct Answer: Spatial sampling across multiple locations and assay of marker component
Q36. What is the main reason to avoid metal-to-metal contact between ribbons and trough wall?
- To save paint
- To prevent contamination, wear, and particle generation
- To increase mixing time
- To reduce electrical consumption
Correct Answer: To prevent contamination, wear, and particle generation
Q37. Which of the following is a common retrofit to improve discharge of cohesive powders?
- Adding internal heaters only
- Introducing agitators, vibrators or scraper blades near discharge
- Decreasing ribbon speed only
- Removing seals
Correct Answer: Introducing agitators, vibrators or scraper blades near discharge
Q38. For highly potent API blending, which practice is often mandated?
- Use the largest open trough available
- Use contained systems with isolators or closed transfer to prevent operator exposure
- No PPE required
- Only manual sampling without containment
Correct Answer: Use contained systems with isolators or closed transfer to prevent operator exposure
Q39. What is the impact of ribbon clearances from the trough wall on mixing?
- Large clearances improve mixing always
- Excessive clearance creates dead zones; minimal clearance reduces scraping and improves homogenization
- Clearance affects only the motor size
- Clearance is only cosmetic
Correct Answer: Excessive clearance creates dead zones; minimal clearance reduces scraping and improves homogenization
Q40. Which property of ribbons contributes to low maintenance and corrosion resistance?
- Painted mild steel only
- Use of stainless steel (e.g., SS316) construction
- Wooden ribbons
- Uncoated iron ribbons
Correct Answer: Use of stainless steel (e.g., SS316) construction
Q41. Which quality attribute is most critical when blending a lubricant like magnesium stearate?
- Blend color uniformity only
- Controlled mixing time to avoid over-lubrication affecting tablet properties
- Lubricant aroma
- Ambient temperature only
Correct Answer: Controlled mixing time to avoid over-lubrication affecting tablet properties
Q42. When assessing ribbon blender performance, what does a low coefficient of variation (CV) indicate?
- Greater variability in content uniformity
- Improved uniformity and consistent blending
- Higher segregation risk
- Poor cleaning performance
Correct Answer: Improved uniformity and consistent blending
Q43. Which feature helps minimize powder entrapment during mixing?
- Sharp corners and rough welds
- Smooth interior finish and sanitary welds
- Using porous gaskets throughout
- Painting the interior with rough coating
Correct Answer: Smooth interior finish and sanitary welds
Q44. What is the main disadvantage of ribbon blenders for continuous processing?
- They are inherently batch devices and adapting to continuous feed requires complex modifications
- They are always cheaper than continuous mixers
- They cannot mix powders at all
- They produce too much heat for any continuous process
Correct Answer: They are inherently batch devices and adapting to continuous feed requires complex modifications
Q45. Which preparatory step improves blend uniformity for very cohesive powders?
- Increasing humidity drastically
- Pre-granulation, addition of flow aids, or pre-conditioning to reduce cohesion
- Filling blender above recommended capacity
- Using only high RPM without other changes
Correct Answer: Pre-granulation, addition of flow aids, or pre-conditioning to reduce cohesion
Q46. Why is sampling strategy important in validating ribbon blender performance?
- Sampling is optional for validation
- Because representative spatial and temporal samples are required to prove homogeneity and reproducibility
- Because only top layer matters
- Because sampling replaces cleaning validation
Correct Answer: Because representative spatial and temporal samples are required to prove homogeneity and reproducibility
Q47. Which of these statements about shear in ribbon blenders is correct?
- Ribbon blenders generate extremely high shear suitable for kneading
- They generate moderate shear; not as high as high-shear mixers but more than tumble blenders
- They produce zero shear
- Shear is irrelevant to powder blending
Correct Answer: They generate moderate shear; not as high as high-shear mixers but more than tumble blenders
Q48. Which operational control can help reduce segregation during discharge?
- Open the discharge fully and rapidly
- Controlled, gradual discharge and use of internal agitators if needed
- Vibrate the entire floor
- Discharge only from the top
Correct Answer: Controlled, gradual discharge and use of internal agitators if needed
Q49. What is a practical limit when handling very abrasive powders in ribbon blenders?
- No special considerations needed
- Use wear-resistant liners or harder stainless alloys to reduce erosion
- Increase ribbon speed indefinitely
- Remove all seals to reduce friction
Correct Answer: Use wear-resistant liners or harder stainless alloys to reduce erosion
Q50. For implementation of a ribbon blender in a GMP facility, what documentation is essential?
- Only the purchase invoice
- Design drawings, material certificates, validation protocols, SOPs, and maintenance records
- Only operator’s personal notes
- No documentation is necessary
Correct Answer: Design drawings, material certificates, validation protocols, SOPs, and maintenance records
I am a Registered Pharmacist under the Pharmacy Act, 1948, and the founder of PharmacyFreak.com. I hold a Bachelor of Pharmacy degree from Rungta College of Pharmaceutical Science and Research. With a strong academic foundation and practical knowledge, I am committed to providing accurate, easy-to-understand content to support pharmacy students and professionals. My aim is to make complex pharmaceutical concepts accessible and useful for real-world application.
Mail- Sachin@pharmacyfreak.com
